Product Name: Car Reversing Set - Sensors + Rearview Camera + Rearview Screen Item No: 6232153098 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 19920

Description: Specifications:

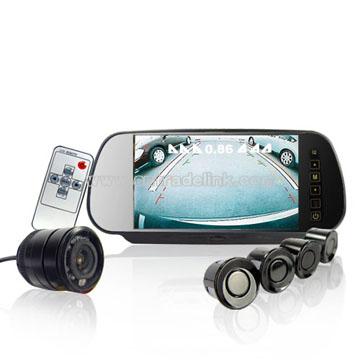

Set Includes 4 Sensors + Sensor Box, Rearview Camera, and Car Rearview Monitor
Car Rear View Monitor Specification:
Screen Information
Screen: 7 Inch TFT LCD
Video Color System: NTSC/PAL (Auto Switch)
Aspect Ratio: 4: 3, 16: 9
Video Output Level: 1Vp-p 75Ohm
Horizontal Resolution: 500 TV Lines
Resolution: 480xRGBx234
Input/ Output
X2 Video IN
Rearview Mirror Pinch Clip: Adjustable- 60mm ~ 90mm
Dimension: 105x250x25mm (LxWxD)
Camera Specification:
Image Device: 1/4 Inch CCD
Color System: NTSC, PAL
Horizontal Definition: 380
Angular Field of View: 75 deg
Minimum Illumination: 0.0 LUX night vision via IR lamps
Scan area: PAL: 5.18x4.19mm; NTSC: 4.69x3.45mm
Scan frequency: PAL 50Hz, NTSC 60Hz
White Balance: Auto
S/N Ratio: <50dB
Operation Temperature: -10 ~ +50 deg C
Connection: RCA
Waterproof
Recommended Max Range for Objects: 5 Meters
Camera + Parking Sensor Specification:
X4 Parking Sensors + Senor Box
Input/ Output
Video IN (For Connecting Camera)
Video OUT (For Connecting Camera and Sensor Information to LCD Screen)
X4 Sensor IN
12V Power OUT (For Powering Camera)
Speaker OUT
Detect and Display Distance: . 4~2M
Functions:
Voice Distance Alert from Speaker
Exact Digital Distance Display of Obstacles on LCD Screen (Displayed in CM Increments)
Alarm Mode
Voice Warnings at 1.2, 0.9, 0.7 Meters
Continual Stop Warning at >0.5 Meters
Other Features:
Camera is equipped with IR lamps, for night vision
Polarized Monitor For Clear Rear Viewing When Monitor Off
Remote or Touch Button Controlled
Automatic Monitor/Camera Feed On While Reversing
Automatic Parking Sensor On While Reversing
