Product Name: 7" Color LCD Portable ATSC+NTSC TV Item No: 6291771887 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 21193

Description: 7inch TFT LCD +ATSC+NTSC TV, especial for USA market.
Srceen Size: 7 INCHES COLOR TFT LCD
Display resolution: 1440(H)*234(V)
Repose time(ms): R: 10/F: 20
Viewing angle: U: 40/D: 60 R/L: 60
Input
ATSC frequency 54MHz 803MHz
NTSC receiving frequency: 55.25MHz 801.25MHz
ATSC SYS:
1. Tuner: Modulate: 8VSB, 64-QAM, 256-QAM;
2. Input Frequency: 54MHz~803MHz; Input Resistance: 75 Ohm
3. MPEG II Decode:
A. Standard of decode: MPEG2 ISO/IEC 13818-2 MPEG2 MP@ML
B. Input code rate: 19.4Mbit/s, video proportion: 4: 3, 16: 9
C. Video format: NTSC-M NTSC-4.43
D. Sound standard of decode: MPEG1, MPEG2 ( LAYER I/ II )
ATV SYS:
1. TV Receiveing: AIR: 2~69 CHANNELS; CATV(STD, IRC, HRC): 2~125 CHANNELS
2. Colour System: NTSC
3. Sound System: 4.5m
Connection Port: External antenna input, stereo earphone jack,
Audio/video jack, external power jack
Inside Speaker: 0.5W x 2, 8 Ohm
Video: 1VP-P 75 OHM (TWO ROUTE)
Audio: 2VP-P double sound track ( left and right); Loudspeaker: Two, 40mm,
Power supply: DC12V 10W
Power Supply: Two options
1. AC power supply-AC adapter
2. Automobile storage battery (12V)-automobile adapter
Volume: 212*178*40 (mm) Weight: 662g around
Working Environment Temperature: 5~35
Storage Temperature: -40~60
Accessories:
Bass Support, AC Adaptor, Earphones, AV Input cord, Car Adaptor and Remote control

China 7" Color LCD Portable ATSC+NTSC TV Manufacturers, Custom Imprinted 7" Color LCD Portable ATSC+NTSC TV, Advertising 7" Color LCD Portable ATSC+NTSC TV, Discount 7" Color LCD Portable ATSC+NTSC TV Supplies

Releate Products

11 Inch TFT LCD ATSC Digital with NTSC TV

New Portable 7inch ATSC+NTSC TV

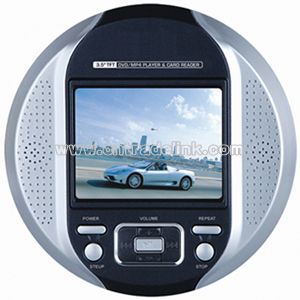

3.5 Inch Portable DVD Player with Card Reader, USB
