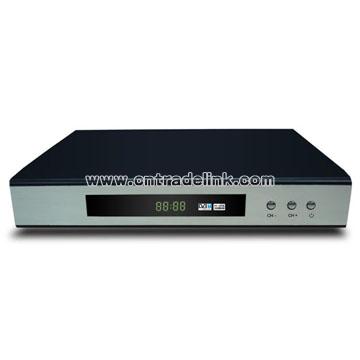

Product Name: HD DVB-T MPEG-4 Receiver Item No: 63015361286 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 21383

Description: Main Features:
. DVB-T SD/HD simultaneous free-to-air reception
. MPEG-2 & MPEG-4 H. 264 decoding
. 4 digits LED indicates channel number and time
. OSD language: English and other languages as per request
. Video format support 1080I, 720p, 576p, 576I
. Variable aspect ratio (4: 3, 16: 9) 4: 3 Pan & Scan or Letter Box modes
. Easy-to-use menu system
. Auto/manual channel search
. Support EPG
. Favourite Channel Edit
. Support teletext/subtitle/audio language selection
. Parental lock function
. Timer function
. Capacity for storing up to 1000 channels
. Full remote control function
Connectors:
. RF input x1
. RF loop through x1
. HDMI x1
. Video output: Component YPbPr x1
S-Video x1
Composite x1
. Audio output:
Stereo L/R x1
Coaxial x1
. RS232 port for firmware upgrade x1
Accessories: Remote control / User manual / battery / AV cable
Technical Specifications:
. System resource: Main chipset: CSM1200HD@220MHz Memory: 8MB Flash ROM; 512MB x 2 DDR
. Tuner & Demodulation: Receiving frequency VHF-High: 174MHz to 230MHz UHF: 474MHz to 858MHz Input signal level: -81~-20dBm IF bandwidth: 6/7/8MHz Video demodulation: COFDM Transmission Mode: 2K FFT, 8K FFT Constellations: QPSK, 16QAM, 64QAM Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8 Guards Intervals: 1/4, 1/8, 1/16, 1/32
. Video decode: MPEG2 MP@HL/ML MPEG4 AVC H. 264 HP@Level 4
. Audio decode: MPEG-1/2/3, AC-3, AAC
. Power supply: Input voltage: AC~ 100V-240V 50/60Hz
Power consumption: 15W(operating)
