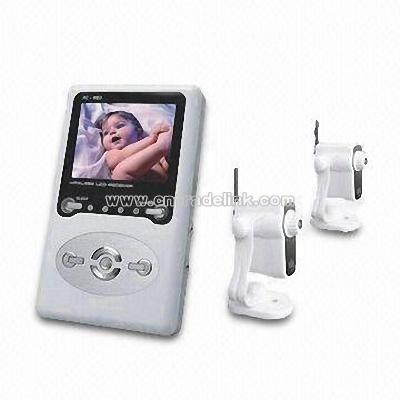

Product Name: Wireless Camera Kit Item No: 1290281234 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 84311

Description: TV system: PAL/NTSC
Validity pixel: PAL (H x V): 628 x 586/NTCS (H x V):510 x 496
Image device: 1/3-inch omnivision CMOS
Horizontal definition: 420 line
Visual angle: 45°(f=6mm)
Minimum illumination: 1Lux(F1.2)
Synchronization system: internal
Scanning frequency (H): 15.625/15.734KHz
Scanning frequency (V): 50/60Hz
Backlight compensation: auto
Electronic shutter: 1/50(1/60)-1/100,000 seconds
White balance: auto
S/N ratio: >48dB
Gamma correction: >0.45
Operation temperature: -10-50°C/+14-122°C°F
Transmission frequency: ISM 2,400-2,483MHz
Open transmission distance: 100m
Power adapter: DC 5V/500mA
Size: 73 x 60 x 101mm
Weight: 105g
Wireless camera technical specification: (ES-RC820A)
Transmission frequency: ISM 2,400-2,483MHz
Intermediate frequency: 480MHz
Frequency stabilization: ±100MHz
Demodulation mode: FM
Antenna: 50 ohm SMA
Receiving sensitivity: ≤-85dBM
Video output: 1Vp-p@75 ohm,S/N>38dB
Audio Output: 1Vp-p@600 ohm
Power Adapter: DC 12V/500mA
Operation temperature: -10-50°C/+14-122°C°F
Operation humidity: 85%RH
Size: 123 x 72 x 24mm
Weight: 200g
