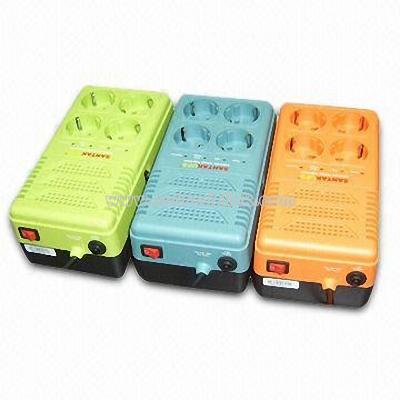

Product Name: Voltage Regulators Item No: 111017554110 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 54153

Description: Features and benefits:
800VA
Automatic voltage regulation
Automatically changes and corrects the output voltage, carefully following the input voltage
Visual indicators using 4 LEDS (power, AVR, surge and over-load)
Provides the user with the AVR functions status
Protects telephone, Internet, DSL and fax/modem
120V AC or 220V AC (depending on the model)
6 NEMA standard outlets/4 schuko standard outlets
Typical applications:
Home PCs
Workstations
Audio/video equipments
TVs
DVD players
Sound systems
Entertainment systems
Other electronic equipments
Small electro domestics
Technical specifications:
Capacity: 800VA/400W
AC input normal voltage: 110, 115, 120V AC or 220, 230 and 240V AC
Input voltage range: 80V AC to 144V AC or 161V AC to 288V AC (-30%, +25%)
Phase: one phase, two wires
Frequency: 50Hz or 60Hz
AC output:
Output voltage range: 103V AC to 127V AC or 207V AC to 253V AC (±10%)
Frequency: 50Hz or 60Hz
Outlets: 6 nema/4 schuko
Protection:
Network: surge suppression/RJ-11
Over-load: manual reset circuit switch
Short-circuit: manual reset circuit switch
LED power on/off: green LED
Output cut off: red LED
Environment:
Operating temperature: 0 to 40°C
Relative humidity: 0 to 95%, non-condensing
Audible noise: <40dB at 1M
Physical dimension: 220 x 110 x 88mm
Net weight: 2.5kg
Design, manufacture and services: ISO 9001-2000
Warranty: one year
