Thermostatic Cooling Adapter for XBOX 360, Wholesale China Thermostatic Cooling Adapter for XBOX 360

Home » Sport & Travel Department » Toys & Games » Xbox Accessories » Thermostatic Cooling Adapter for XBOX 360

Product Name: Thermostatic Cooling Adapter for XBOX 360 Item No: 1281912969 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 66528

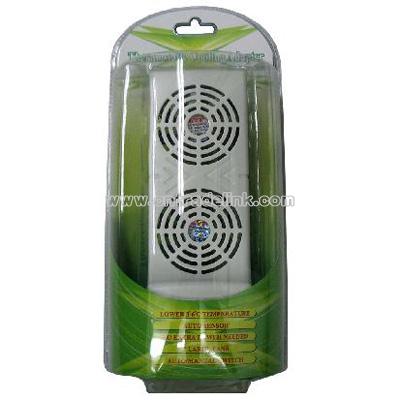

Description: Thermostatic Cooling Adapter for XBOX 360
Detailed Description
Thermostatic Cooling Adapter Extend using life and Maintain the reliability for Xbox360
High-Efficiency Snap-on Cooling Device .
Lower working temperature at least 10 C , extend using life of Xbox360
Auto Temperature Sensor ,cooling fans will be on/off automatically
Power from Xbox360 directly , no extra A/C adapter needed
Snap-on type , easy to set up and remove
Release high temperature rapidly through 2 large cooling fans
With Auto / Manual
power switch for cooling fans
SPECIFICATION :
Power : DC 12V , 330 MA
Fan : 60 x 60 x 15 mm x 2 pcs
Noise Level : 25 Db max.
Air Flow : 25 CFM
Fan Speed : 4000 rpm
Dimension : ( WxLxH)
INSTALLATION
1. Make sure your Xbox360 is turned off and the power cord is disconnected from the outlet. If the console was previously connected to your TV, please temporarily detach the AV plug from the back of the console.
2. Align the thermostatic fan male
plug into the Xbo360 power port and guide the upper security pins into the opposing air vent holes( Fig.1- 1). Please do not use excessive force.
3. Gently press the thermostatic fan and console together until the security pins at the top lock into the air vent holes and the edge of the
Cooling Adapter is pressed against the back of the console. (Fig.1- 2).
4. Attach the Xbox 360 power cord into the female power port on the Cooling Adapter. (Fig.1-3).
5. Attach the Xbox 360 power adaptor to a power outlet.
6. Attach the Xbox 360 AV cable to the appropriate
port on the back.
7. Power up the console first, then slide the ON/OFF switch to Auto
