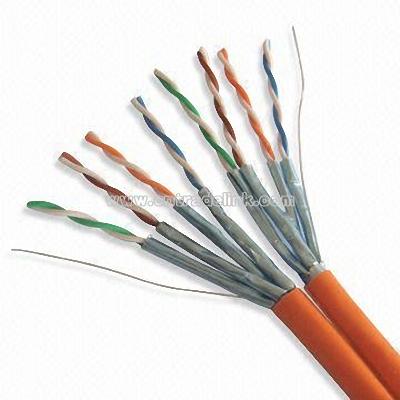

Product Name: CAT6 Cable Item No: 11923574961 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 81493

Description: Includes:
BC conductor
Insulation
Divider
Separator
Drain wire
Aluminum Mylar shield
Rip cord
PVC sheath
Conductor:
Material: solid bare copper
Number of pairs: 8 pairs
AWG: 24AWG
Conductor diameter: 0.575±0.003mm
Insulation:
Material: PE
Diameter: 1.18±0.005mm
Average thickness: 0.3025mm
Minimum point thickness: 0.3020mm
Divider: PP
Separator: PET
Drain wire: ?0.40mm TC
Overall screen: aluminum mylar shield (superposition rate: 25%)
Jacket rid cord: optional
Sheath:
Material: PVC or LSZH
Nominal diameter: 6.8±0.2mm
Average thickness: 0.6mm
Minimum point thickness: 0.595mm
Operating temperature: -20 to 75°C
Minimum bend radius (install): (OD) 8mm
Flame test: CMX, CM, CMR and IEC60332-1
Reference standards: TIA/EIA568B and IEC/ISO11801
