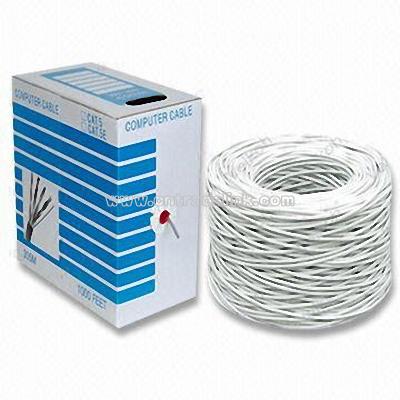

CAT5e Network Cable, Wholesale China CAT5e Network Cable

Home » Electronics Department » Computer Accessories » Ethernet Cable » CAT5e Network Cable

Product Name: CAT5e Network Cable Item No: 11923491959 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 81487

Description: Temperature rating: 75 degree Celsius
Spark test: 2,000V AC/0.15sec minimum
Dielectric strength: 750V AC/1sec minimum
Mutual capacitance: 5.6nF/100, maximum
Pair to ground unbalance: 330pF/100M, maximum
D-C resistance: 8.76 ohms/100M at 20 degree Celsius maximum
D-C resistance unbalance: 5%, maximum
Impedance: 100 +/- 15 ohms
Material of conductor: bare copper
Material of insulation: PE
Insulation resistance: PE: DC-500V 1,500M ohms/100M minimum at 20 degree Celsius
Overall jacket: PVC, PE, and LSOH
Assembly type: snag-less molded boot, snag-free molded boot, and molded
Rubber boots used for strain relief, protecting from the bending or other damages
Pin-out: 568B straight through, 568A straight through, cross-over
Connector: 50-micro gold plated RJ45 male/male connectors
Rated temperature: 75 degree Celsius
Cable colors: red, white, blue, yellow, black, green, gray, orange, purple, and pink
Plug: 8P8C shielded or unshielded gold plated modular plugs with 50 micron gold plated
Shield: UTP, FTP, STP, and SFTP
Length: 1, 2, 3, and 4 up to 100ft (or as per requirement)
AWG: 23, 24, 26, and 28AWG (optional)
