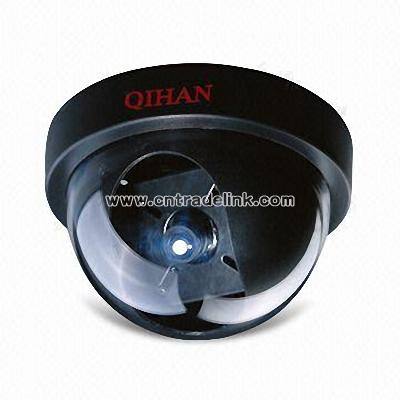

Product Name: 1/3-inch Dome Camera with 540TVL Horizontal Resolution and PAL/NTSC TV System Item No: 1271731166 U.Price: FOB ShenZhen IN China($) Negotiable Payment: T/T 83818

Description: Image sensor: 1/3-inch Sony super HAD CCD
Horizontal resolution: 540TVL
Resolution:
PAL: 752 x 582 pixels
NTSC: 768 x 494 pixels
TV system: PAL/NTSC
Synchronization system: internal synchronization
Usable illumination: 1.0 lux/F1.2
Lens: 3.6, 6, and 8mm lens option
S/N ratio: ≥48dB (AGC off)
Gamma characteristic: 0.45
Video output: 1.0Vp-p, 75Ω
Scanning system:
PAL: 625 lines, 50fps
NTSC: 525 lines, 60fps
Electronic shutter time: automatic
PAL: 1/50 to 1/100,000 seconds
NTSC: 1/60 to 1/100,000 seconds
White balance: automatic
Power supply: 12V DC ±10%, 120mA
Operating temperature: -10 to 50°C, 95% RH (maximum)
Storage temperature: -20 to 60°C, 95% RH (maximum)
Dimensions: 120 x 100mm
Weight: 250g
